AVENTICS-P-LS04

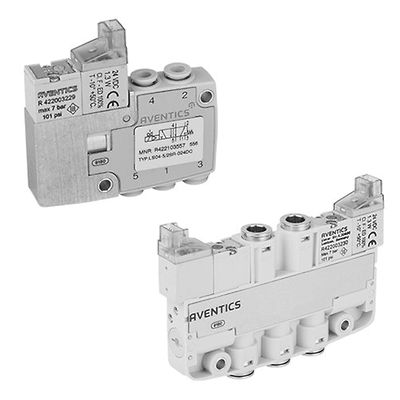

AVENTICS™ Series LS04 Directional valves

Select Product
Consult an Expert
Spare Parts

Product Description

The AVENTICS Series LS04 are lightweight spool valves and save space with their polyamide and aluminium housing. The valves are suitable for direct mounting onto moving machines and system parts.

Products

Search
1-10 of 34 results for Products
:
R422004129
AVENTICS™ 3/2-directional valve, Series LS04-PD R422004129
Activation
Electrically
Flow (L/M)
310 l/min
Valve Function
NC
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
310 l/min
NC
7 bar
QuickShip
$263.48
ADD TO CART
ADD TO WORKSPACE
R422005154
AVENTICS™ 3/2-directional valve, Series LS04-PD R422005154
Activation
Electrically
Flow (L/M)
180 l/min
Valve Function
NC
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
180 l/min
NC
7 bar
QuickShip
$263.48
ADD TO CART
ADD TO WORKSPACE
R422103555
AVENTICS™ 5/2-directional valve, Series LS04-XS R422103555
Activation
Electrically
Flow (L/M)
200 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
200 l/min
5/2
7 bar
QuickShip
$98.22
ADD TO CART
ADD TO WORKSPACE
R422103556
AVENTICS™ 5/2-directional valve, Series LS04-XS R422103556
Activation
Electrically
Flow (L/M)
200 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
200 l/min
5/2
7 bar
QuickShip
$103.38
ADD TO CART
ADD TO WORKSPACE
R422103557
AVENTICS™ 5/2-directional valve, Series LS04-XS R422103557
Activation
Electrically
Flow (L/M)
200 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
200 l/min
5/2
7 bar
QuickShip
$98.22
ADD TO CART
ADD TO WORKSPACE
R422103558
AVENTICS™ 5/2-directional valve, Series LS04-XS R422103558
Activation
Electrically
Flow (L/M)
200 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
200 l/min
5/2
7 bar
QuickShip
$103.38
ADD TO CART
ADD TO WORKSPACE
R422103559
AVENTICS™ 5/2-directional valve, Series LS04-AF R422103559
Activation
Electrically
Flow (L/M)
180 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
180 l/min
5/2
7 bar
QuickShip
$90.36
ADD TO CART
ADD TO WORKSPACE
R422103560
AVENTICS™ 5/2-directional valve, Series LS04-AF R422103560
Activation
Electrically
Flow (L/M)
310 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
310 l/min
5/2
7 bar
QuickShip
$90.36
ADD TO CART
ADD TO WORKSPACE
R422103561
AVENTICS™ 5/2-directional valve, Series LS04-AF R422103561
Activation
Electrically
Flow (L/M)
180 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
180 l/min
5/2
7 bar
QuickShip
$95.16
ADD TO CART
ADD TO WORKSPACE
R422103562
AVENTICS™ 5/2-directional valve, Series LS04-AF R422103562
Activation
Electrically
Flow (L/M)
310 l/min
Valve Function
5/2
Max Working Pressure
7 bar
availability
Activation
Flow (L/M)
Valve Function
Max Working Pressure
availability
Electrically
310 l/min
5/2
7 bar
QuickShip
$95.16
ADD TO CART
ADD TO WORKSPACE
1
1 2 3 4
1-10 of 34 results

Features

  • Compact and lightweight
  • Fast switching possible
  • Easy to integrate
  • Suitable for moving applications

Parts & Accessories

Search
1-4 of 4 results for Parts & Accessories
:
R412024482
AVENTICS™ Valve plug connector, series CON-VP R412024482
Electrical Connection Type 2
Plug
Cable Exit 1
straight
Cable Option
with cable
Number of Poles 2
2-pin
availability
Electrical Connection Type 2
Cable Exit 1
Cable Option
Number of Poles 2
availability
Plug
straight
with cable
2-pin
QuickShip
$4.48
ADD TO CART
ADD TO WORKSPACE
R422003277
AVENTICS™ Valve plug connector, series CON-VP R422003277
Electrical Connection Type 2
Cable Exit 1
straight
Cable Option
Number of Poles 2

availability
Electrical Connection Type 2
Cable Exit 1
Cable Option
Number of Poles 2
availability
straight

$23.02
ADD TO CART
ADD TO WORKSPACE
R422003278
AVENTICS™ Valve plug connector, series CON-VP R422003278
Electrical Connection Type 2
open cable ends
Cable Exit 1
straight
Cable Option
with cable
Number of Poles 2
2-pin
availability
Electrical Connection Type 2
Cable Exit 1
Cable Option
Number of Poles 2
availability
open cable ends
straight
with cable
2-pin
QuickShip
$4.12
ADD TO CART
ADD TO WORKSPACE
R422003279
AVENTICS™ Valve plug connector, series CON-VP R422003279
Electrical Connection Type 2
open cable ends
Cable Exit 1
straight
Cable Option
with cable
Number of Poles 2
2-pin
availability
Same Day
Electrical Connection Type 2
Cable Exit 1
Cable Option
Number of Poles 2
availability
open cable ends
straight
with cable
2-pin
Same Day
QuickShip
$5.47
ADD TO CART
ADD TO WORKSPACE
1-4 of 4 results

Documents & Drawings
