ASCO™ 316 3-Way Solenoid Valves

Product Description

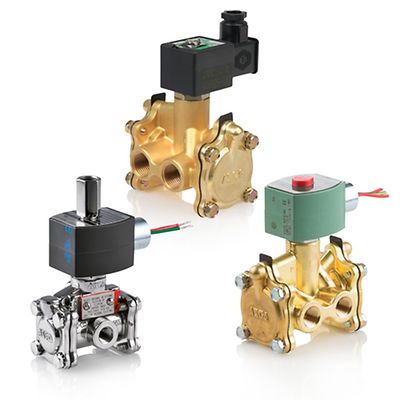

The ASCO Series 316, also known as 8316, is a line of high-flow, 3-way solenoid valves, which can be used to pilot large actuators and provide quick closing of large control valves. The diaphragm poppet design is suitable for controlling air, inert gas and liquids. Its resilient seating achieves tight shutoff.

Models

{ searchResult: { pageSize: 10, searchTerms: '', totalPageNumber: 6.0, totalResultCount: 51, currentPageNumber:1, attributes: "" } }

Compare Add more to compare Added

Specifications

Valve Actuation: Solenoid - Direct Acting

Body Material: Brass

Media: Air, Inert Gas; Water

Pipe / Port Size: 1/2 "; 3/8 "; 3/4 "; 1 "

Port Type: NPTF

Function: 3 way - 3/2 Normally Closed; 3 way - 3/2 Normally Open

Flow: From 2.0 Cv to 6.0 Cv; From 6.0 Cv to 14.0 Cv

Voltage: 100 to 240 AC/DC Voltage Ranging; 12 to 24 DC Voltage Ranging; 125 DC Battery Charging; 110 AC; 12 DC; 120 AC; 120 DC; 24 AC; 24 DC; 24 to 120 AC/DC Voltage Ranging; 250 DC Battery Charging; 240 - 50; 50/60; 60

Operating Environment: Hazardous; Indoor; Outdoor

Standards / Regulations: ATEX Zone 0-20; Class I Div 1; Class I Div 2; CSA; IEC Ex Zone 0-20; SIL; Type 1; Type 2; Type 3; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL

Features

Low-power version has a molded one-piece solenoid with a highly efficient solenoid cartridge and special low wattage coil. Handles ambient temperatures up to 175° F (80° C). Designed for use in plant control automation to provide PLC compatibilit
Zero-minimum differential version features a brass body for general atmospheres and a stainless steel body for corrosive environments
Intrinsically-safe version is designed solely for installation in intrinsically safe or NIFW areas with properly approved and sized limiting barriers
A full range of globally approved explosion-proof enclosures are available with this series
