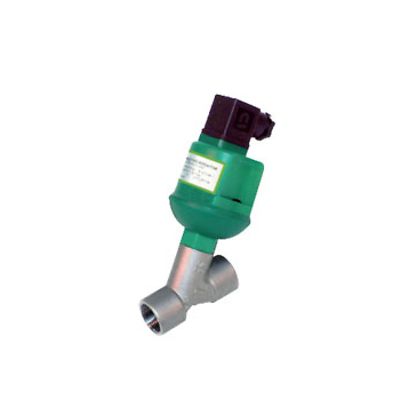

ASCO™ E290CP3V0KFC4V1

Body Material

Stainless Steel

Flow (Cv) / Flow (Kv)

4.39 / 3.80

Function

2/2 Normally Closed

Pipe/Port Type & Size

G 1/2 (ISO 228/1)

Product Type

Solenoid Valve

Valve Actuation

Motorised

Media

Air, Inert Gas; Water; Light Oil

Min to Max Operating Pressure (Air)

0 - 5 bar

Min to Max Operating Pressure (Light Oil)

0 - 5 bar

Product Weight

0.45 kg

Min to Max Ambient Temperature

-10 - 50 °C

Min to Max Fluid Temperature

-10 - 90 °C

Orifice Size

15 mm

Voltage

24 Volts DC
